Plastic extruding flat film stretching line

  • Product Name:

    Plastic extruding flat film stretching line

  • Model No:  SJPL-Z
  •   Skype Me  Email Us
  • Plastic extruding flat film stretching line
  • Plastic extruding flat film stretching line

Detailed Product Description

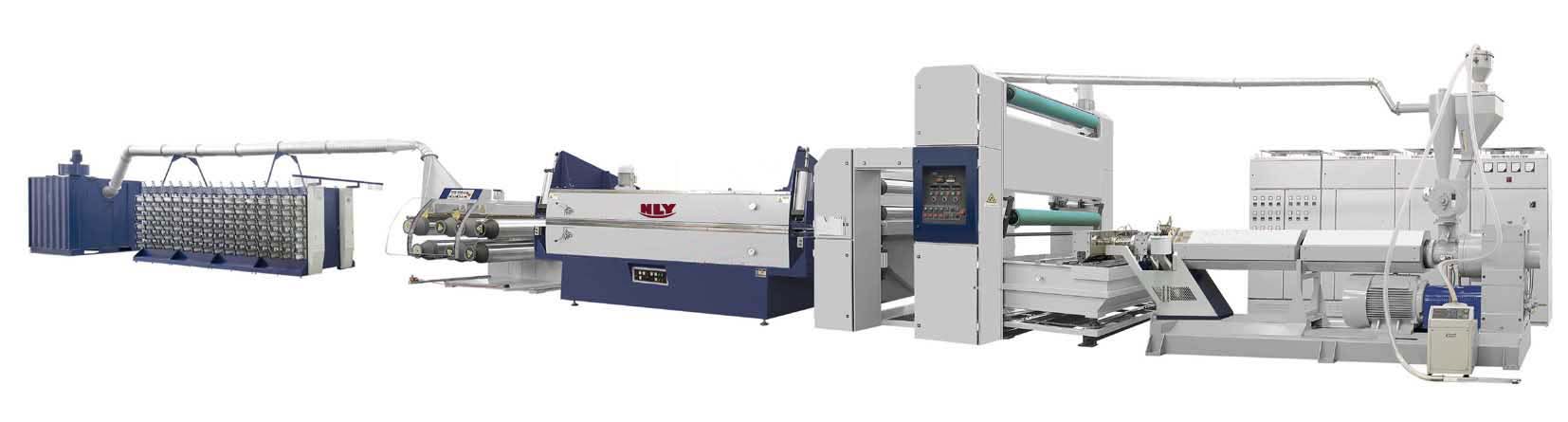

SJPL-Z Woven bag/ Tape extrusion line
★ Specially designed screw can be used for both virgin and recycled material
★ Six moisture absorption pipes dry the film perfectly
★ Double layer oven is opened by double cylinder which makes the structure more
★ The oven use PID intelligent temperature control and power regulator
★ Specially designed passage, making hot wind distribute evenly
★ The take-off units use casting frame to keep rollers running smooth
★ High quality reciprocated screw with critically process
★ European standard safeguard system


The principal technical index of this line reaches international advancing level. This line has the performance of high speed,high producion,low energy consumption,good forming quality of the bobbin.The structure of this line is compact with a pleasing appearance,smooth running,flexible and reliable control excellent manufacturing technics,convenient and safe operation. It can be used in many aspects,especially in various flat forming conversion of thermoplastics, such as PP, HDPE, LDPE etc. It is mainly used for woven bag,jumbo bag,geotexile.



Main technical parameter:

ItemSJPL-Z90×33-1000SJPL-Z100×33-1100SJPL-Z110×33-1300SJPL-Z120×33-1500
Max extrusion volume315kg/h390kg/h480kg/h530kg/h
Screw Diameter90mm100mm110mm120mm
Ratio of L/D33:133:133:133:1
Rotation speed of screw20-120r/min20-120r/min20-120r/min20-120r/min
Length of mold lip1000mm1100mm1300mm1500mm
Max production speed280m/min280m/min280m/min280m/min
Flat yarn fibre scope60-200tex60-200tex60-200tex60-200tex
Drawing ratio4-104-104-104-10
No.of winder160Spindles184Spindles216Spindles240Spindles
System installed capacity300kw350kw410kw460kw
System normal operational capacity(about)180kw210kw246kw276kw
Overall dimension(L×W×H)32700×3765×2600mm34800×3765×2650mm35800×3830×2700mm37000×3900×2800mm
Total weight26T27T29T32T
