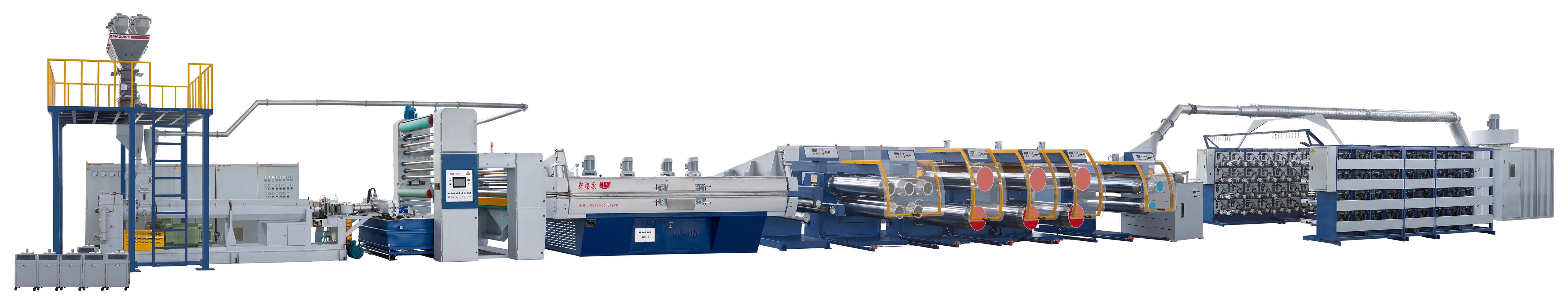

Airficial Grass Tape Extrusion Line

  • Product Name:

    Airficial Grass Tape Extrusion Line

  • Model No:  SJPL-C
  •   Skype Me  Email Us
  • Airficial Grass Tape Extrusion Line
  • Airficial Grass Tape Extrusion Line

Detailed Product Description




▶Features

★ UsingDouble extruders to produce the different color glass at same time
★ Using 3+1 position dosing system
★ Melt pressure on-line inspection and display digital intelligently
★ Automatic double layer screen exchangeer
★ The cooling water tank has water constant stabilizer
★ Use X-ray to inspect the thickness of film on line and record all data
★ Rotary knife stand with 5 kinds of knife for continuous using

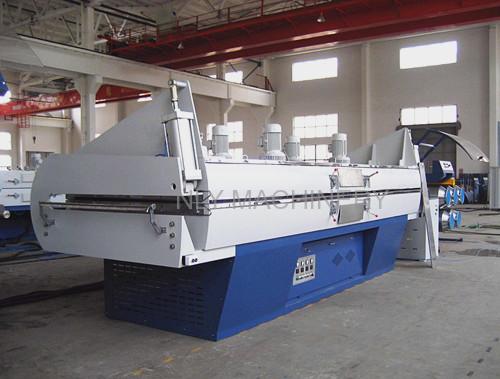

★ Double layer oven is opened by double cylinder which makes the structure more fluent
★ Specially designed passage, making hot wind distribute evenly
★ Big heating roller which can reach 250 degree sets the yarn perfectly
★ High quality reciprocated screw with critically process
★ European standard safeguard system



Technical parameter:
ItemSJPL-Z90×33-1000SJPL-Z100×33-1100

Max extrusion volume180kg/h260kg/h

Screw Diameter70mm90mm

Ratio of L/D33:133:1

Rotation speed of screw20-120r/min20-120r/min

Length of mold lip1000mm1100mm

Max production speed280m/min280m/min

Flat yarn fibre scope60-200tex60-200tex

Drawing ratio4-104-10

No.of winder144 Spindles204 Spindles

System installed capacity300kw350kw

System normal operational capacity(about)180kw210kw

Overall dimension(L×W×H)32700×3765×2600mm34800×3765×2650mm

Total weight26T27T


▶Service & Advantage

1. Provide the most advanced industry solution.

2. Free consulting for layout of new workshop.

3. Running and test with feeding material before delivery.

4. Could provide the trainning service for your new workers.

5. Could provide the 24 hours video service.
