Zipper Monofilament Drawaing Machine

  • Product Name:

    Zipper Monofilament Drawaing Machine

  • Model No:  SYL-L
  •   Skype Me  Email Us
  • NLY Zipper Monofilament Making Machine
  • Zipper Monofilament Drawaing Machine
  • Zipper Monofilament Drawaing Machine
  • Zipper Monofilament Drawaing Machine
  • Zipper Monofilament Drawaing Machine
  • Zipper Monofilament Drawaing Machine

Detailed Product Description


Application

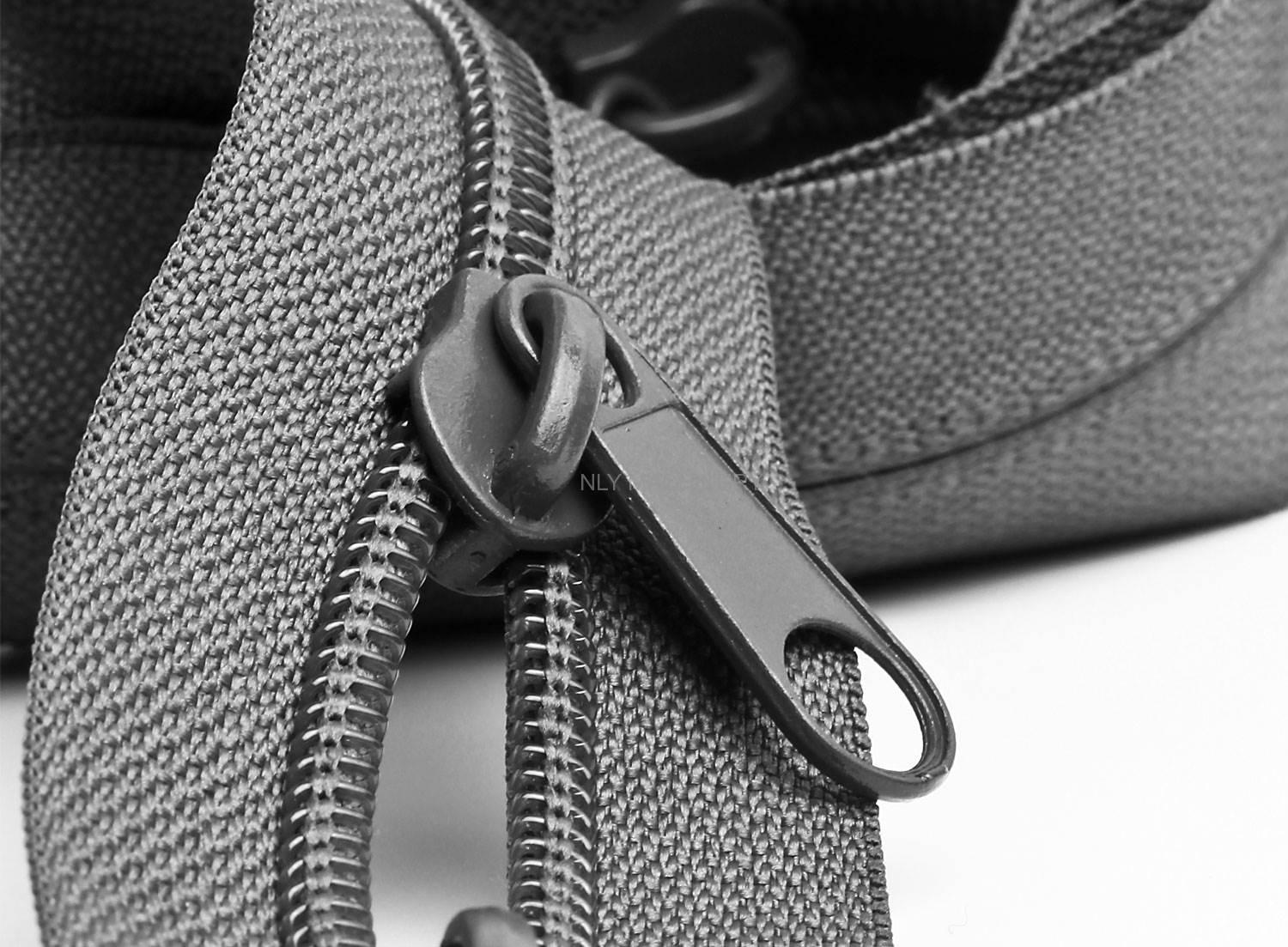

High quality zipper, velcro.


Features

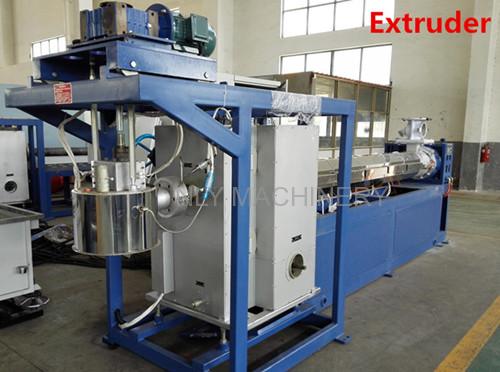

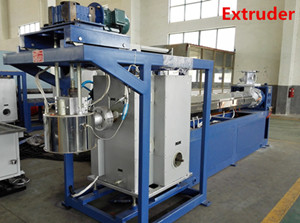

Extrusion Process




Stretching & Setting Process

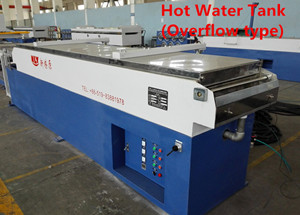

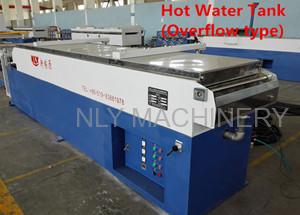

 Overflow type Hot Water Device : Achieve best filament roundness and stretching efficiency

without contact to any hard surface .

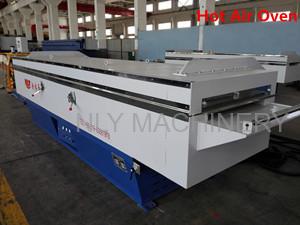

Hot Air Oven for stretching & Setting :

 Specially designed passage of hot oven,makes hot wind distribute evenly

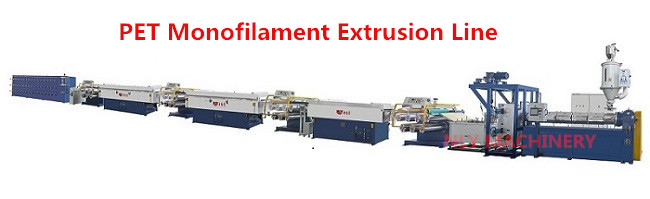

This Zipper monofilament extruding machine, disigned with two-stage drawing and additional heat setting , Diameter from ø0.3mm to ø1.1mm , production Output from 100-250kg/Hour fulfill customer's requirement in efficiency ,performance , energy saving ,low noise , low maintenance cost .



Specifiacations

ItemPET Zipper Monofilament Making Machine
Material to be usedPET Virgin or PET bottle flakes
Dia. of monofilamentø 0.3-1.1mm
Dia. of screw90mm , 100mm
Ratio of L/D30:1
Spinneret Die Head
Single or Double
Heating type of spinneretoil-heating
Stretching modehot water, hot air
Qty. of stretching unit4 Sets
System installed capacity260-300KW
Normal operational capacity150-200KW
Overall size(LxWxH)45
Total weight25-35T



Service & Advantage

1. Provide the most advanced industry solution.

2. Free consulting for layout of new workshop.

3. Running and test with feeding material before delivery.

4. Could provide the trainning service for your new workers.

5. Could provide the 24 hours video service.
