PET, PA Monofilament extrusion machine

  • Product Name:

    PET, PA Monofilament extrusion machine

  • Model No:  SYL-N
  •   Skype Me  Email Us
  • PA Monofilament Making Machine
  • PET, PA Monofilament extrusion machine
  • PET, PA Monofilament extrusion machine
  • PET, PA Monofilament extrusion machine

Detailed Product Description

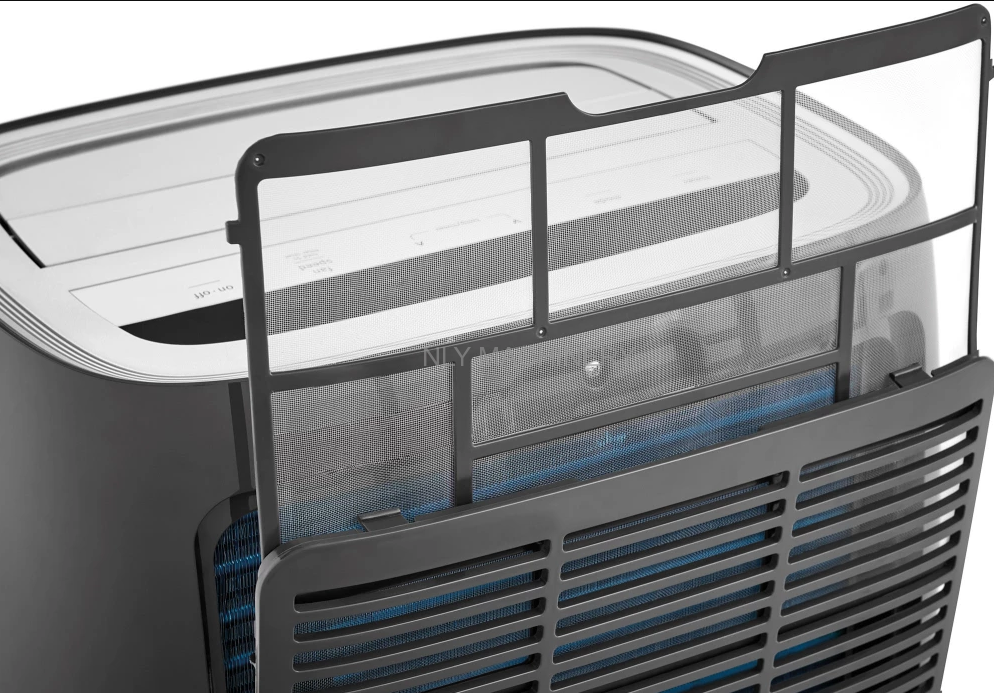

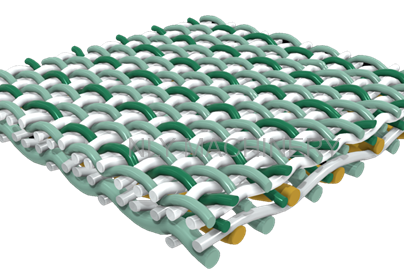

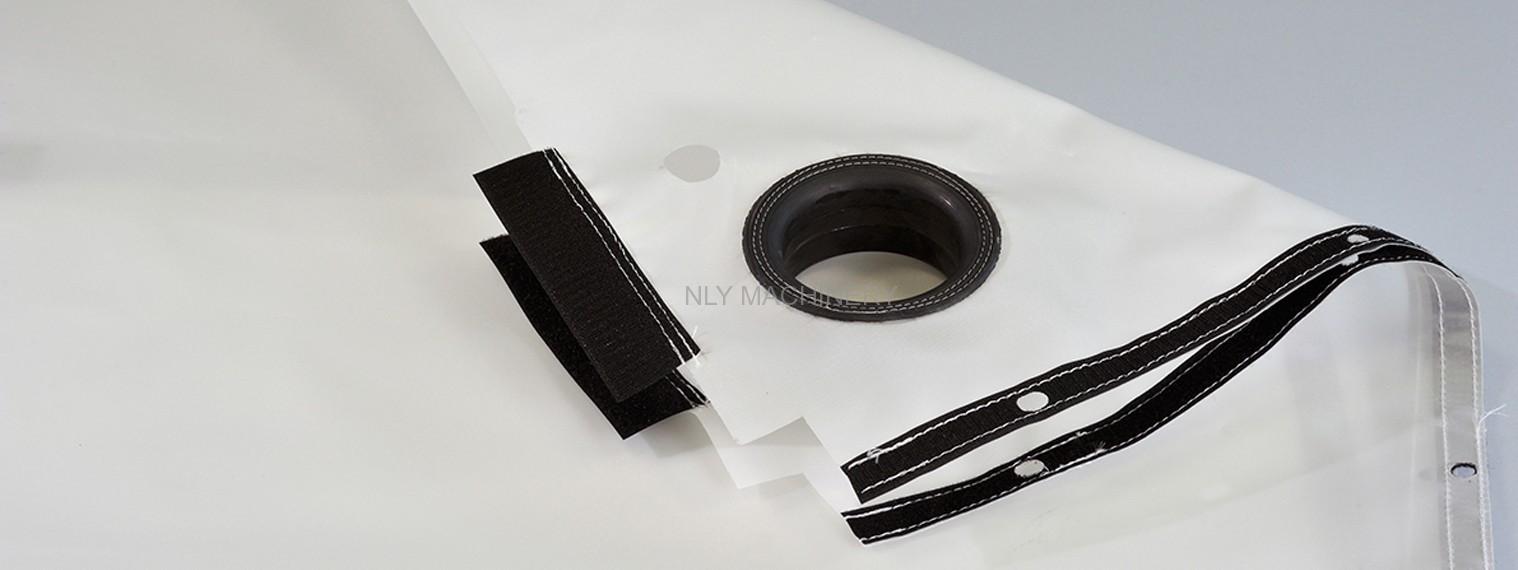

Press filter fabric, Paper forming fabric, AC filter fabric



  • Special design screw.

  • Automatic adjustment screw speed.

  • Extruder with automatic pressure feedback system to accurately control the output.

  • PID intelligent temperature control.

2. Cooling Water Tank

  • independent heating system.

  • Unique flow channel ensure each yarn running without interference.

3. Stretching Roller Machine

  • Helical gear transmission system with oil bath lubrication reduce the maintenance times and cost.

  • All the take-off units use casting frame to keep bevel wheel running smooth.

  • AC Motor complete with AC inverter Drive.

  • All driving rollers with Hard Chromim plated.

  • Ceramics plate also available. It have better anti-corrosion ability.

4.Overflow type hot water tank

  • 304SS tank ensure the long service time.

  • Excellent insulated treatment help saving energy and cost.

  • Free contact with any hard surface, to achieve best filament roundness and stretching efficiency.

  • PID Temperature controller.

5. Hot Air Oven

  • Excellent insulated treatment help saving energy and cost

  • Patented air flow designed to ensure consistent temperature and evenly heat distrubution.

  • Double layer oven also available which can heat and stretch the yarn in all around.

  • PID Temperature controller.

6. Winder

  • Various Types can satisfy customers' demands.

  • Linear guideway to control the alternate motion.

Technical parameter:

ItemPET、Nylon PA Monofilament Extrusion Line
MaterialPET or PA6 or PA66
Dia. of monofilamentø0.08-0.35;0.4-2.5mm
Output10 to 200 kg/Hour
Die HeadSingle or Double Heads
Cooling Water tank 304SS
Take Off Unit 4 Sets
Hot Air Oven 2 to 3 Sets
WinderSingle or Double Sides
Electrical Control System1Set

▶Service & Advantage

1. Provide the most advanced industry solution.

2. Free consulting for layout of new workshop.

3. Running and test with feeding material before delivery.

4. Could provide the trainning service for your new workers.

5. Could provide the 24 hours video service.
