Bristle Brush Monofilament Extrusion Machine

  • Product Name:

    Bristle Brush Monofilament Extrusion Machine

  • Model No:  Bristel
  •   Skype Me  Email Us

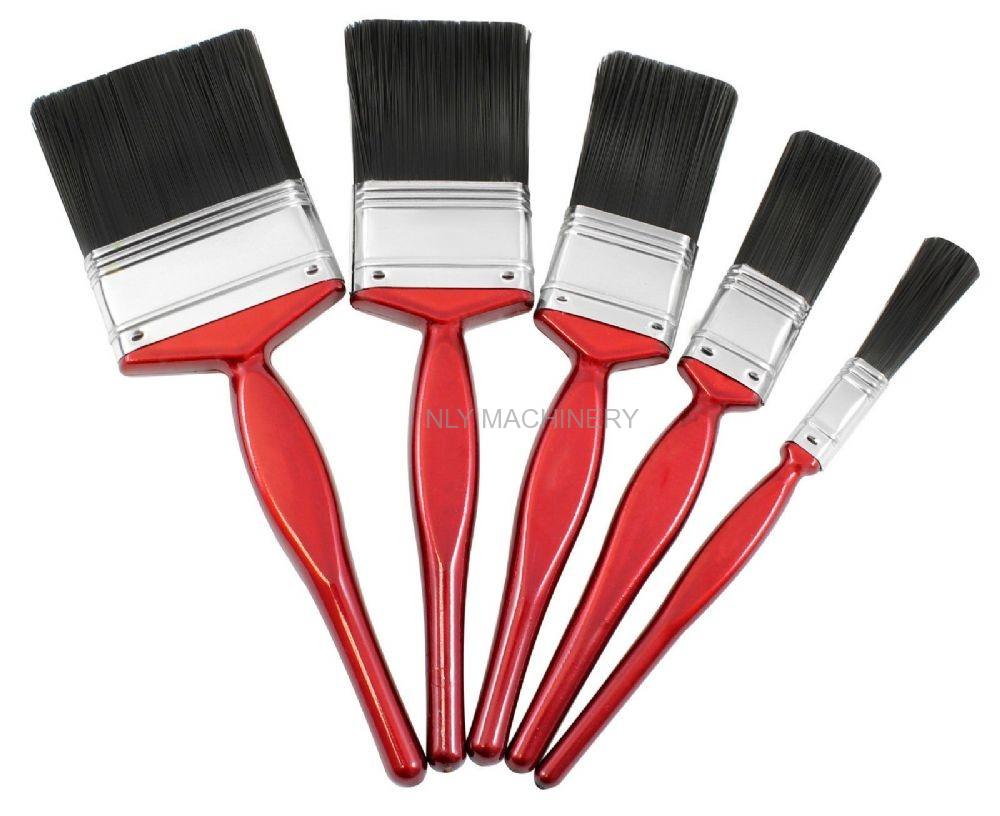

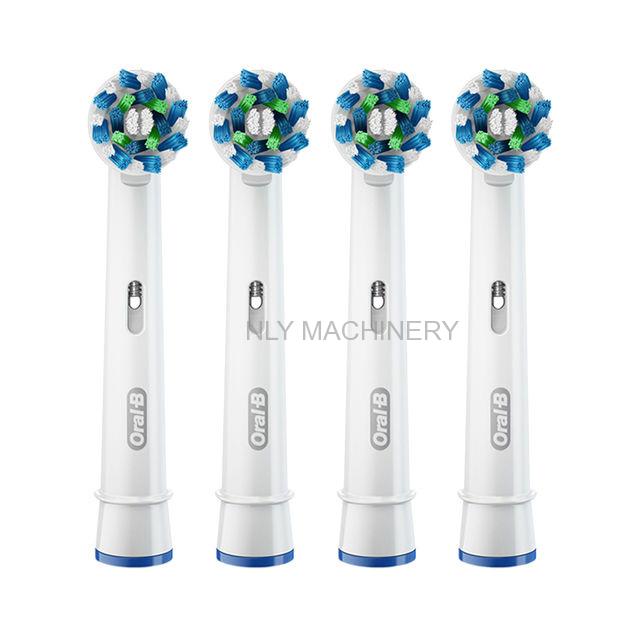

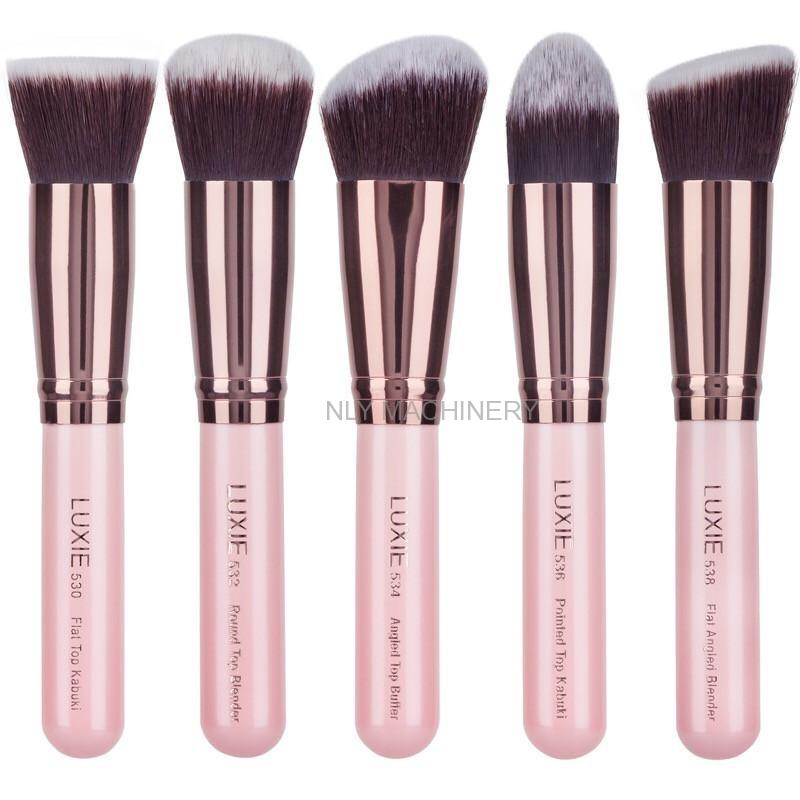

  • Painting Brush , Toothbrush , Make-up Brush Monofilament Extruder Machine
  • Bristle Brush Monofilament Extrusion Machine
  • Bristle Brush Monofilament Extrusion Machine
  • Bristle Brush Monofilament Extrusion Machine
  • Bristle Brush Monofilament Extrusion Machine

Detailed Product Description

Application

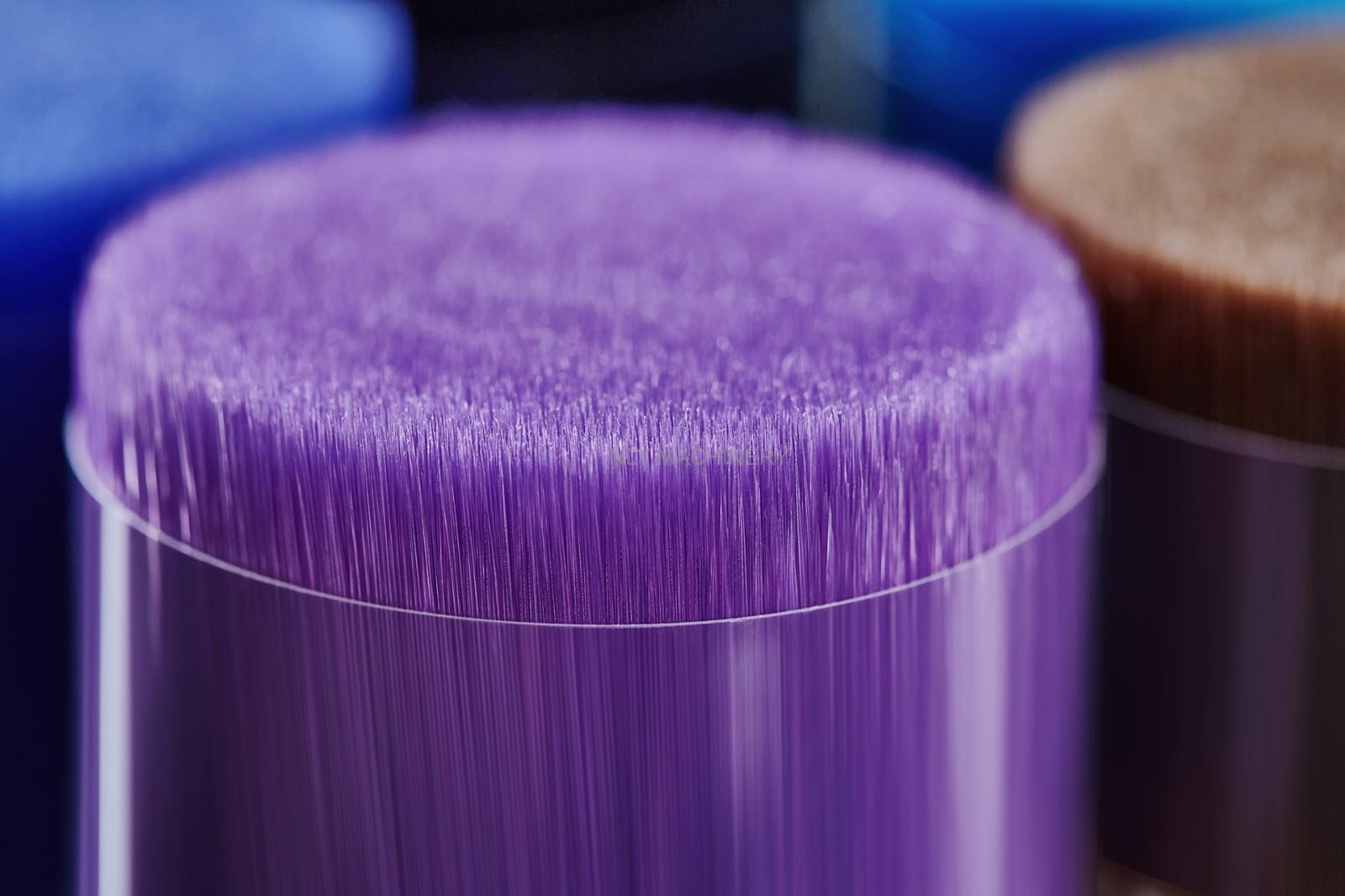

1.multi colour spiral monofilament

2.core spun monofilament

3.monofilament.



Features

1. The screw barrel equip the cooling fans, cooling down autometic when over temperature.

2. The structure of die head is specially designed, the out put is more uniform.

3. The take off roller use helical gear to make running more stable and smooth.

4. The hot water tank use overflow type, the yarn is more fully heated.

5. The flow channel of oven is specially designed to make hot wind more uniform.

6. The oven is treated with many thermal insulations to have a excellent energy saving performance.

7. The reciprocator of winder using linear guide to make running more stable.






ly





Specifications

Item

SYL-S Bristle Monofilament Drawing Line

Raw Material

PET、PA6、PBT

Dia. Range of yarn

Ø0.08mm-Ø0.12mm

Dia. of Screw

Ø45mm-Ø75mm

Ratio of L/D

33:1,30:1

Num. of Die Head

Single or Double

Heating Way of Die Head

Oil heating or Electric heating

Way of Drawing

Hot water, Hot wind

Way of Winder

Single or Bundle





Service & Advantage

1. Provide the most advanced industry solution.

2. Free consulting for layout of new workshop.

3. Running and test with feeding material before delivery.

4. Could provide the trainning service for your new workers.

5. Could provide the 24 hours video service.
