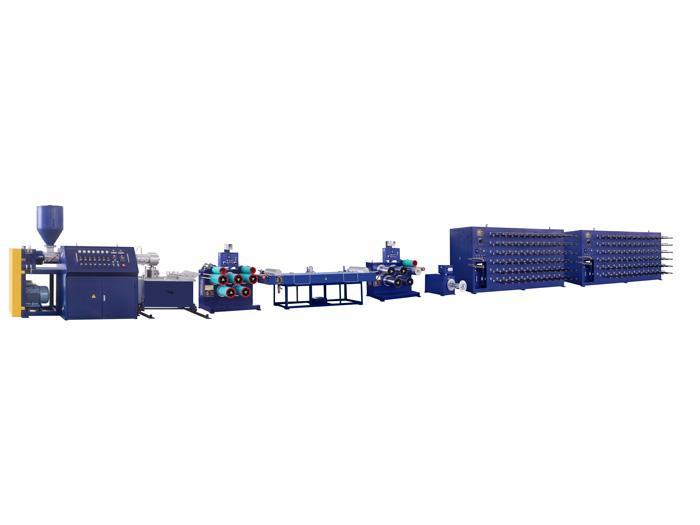

Monofilament extruding line for rope&net

Views: 126005/30/2013

Detailed Product Description

★Using metering pump to control the flow accurately
★The cooling water tank has independent heating system
★New type of the hot water tank keeps temperature stable and saves energy
★All the take-off units use casting frame to keep bevel wheel running smoothly


Main technical parameter:

ItemM50×30-450 monofilament extruding line for rope&net
Materialor bottle flakes
Dia. of monofilamentØ0.10-Ø0.35mm
Dia. of screwØ65mm
Ratio of L/D30:1
Heating type of spinneret150 pcs
Heating type of spinneretelectric-heating
Stretching modehot water
Qty. of stretching unit2
System installed capacity57KW
Normal operational capacity35KW
Overall size(L×W×H)23000×1900×1850mm
Total weight15T
